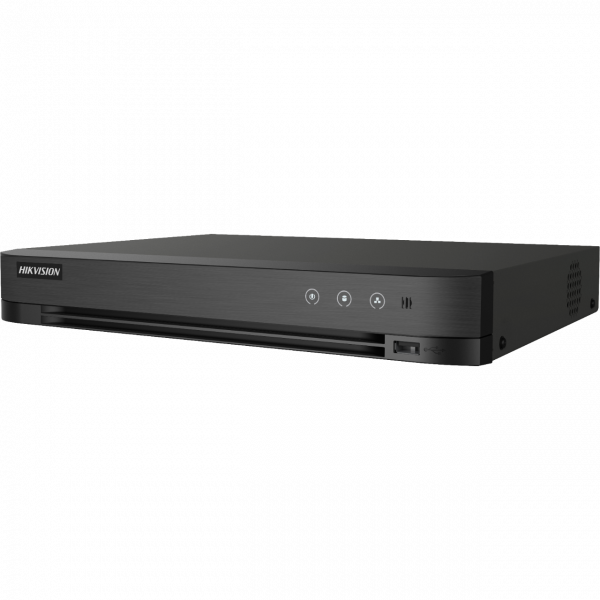

8-ch 1080p 1U H.265 AcuSense DVR

8-ch 1080p 1U H.265 AcuSense DVR 8 channels and 1 HDD 1U AcuSense DVR Supports facial recognition or false alarm reduction based on deep learning algorithm Supports face picture comparison and face picture search Up to 16 face picture libraries, with up to 500 face pictures in total Efficient H.265 pro+ compression technology Encoding ability up to 1080p @ 15 fps 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP) Up to 12 network cameras can be connected

  • Motion Detection 2.0
  • Human/Vehicle Analysis

    Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

    Quick search by object or event type is supported;

  • Perimeter Protection
  • Human/Vehicle Analysis

    Up to 4-ch

    Note: Face picture comparison, motion detection 2.0 and perimeter protection cannot be enabled at the same time. Enable one function will make the other two unavailable.

  • Video Structuralization
  • Face Picture LibraryUp to 16 face picture libraries, with up to 500 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 80 MB)
  • Face Picture ComparisonFace picture comparison, face picture search (1-ch face picture comparison alarm for HD analog camera)
  • Recording
  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution

    Main stream:

    When 1080p lite mode not enabled:

    For 4 MP stream access:

    4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

    For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps

    For 1080p stream access:

    1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

    For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

    When 1080p Lite mode enabled:

    4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

    Sub-stream:

    WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)

  • Video Bitrate32 Kbps to 6 Mbps
  • Dual-streamSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u
  • Audio Bitrate64 Kbps
  • Video and Audio
  • IP Video Input

    2-ch (up to 10-ch)

    Enhanced IP mode on:

    4-ch (up to 12-ch), each up to 4 Mbps

    Up to 6 MP resolution

    Support H.265+/H.265/H.264+/H.264 IP cameras

    Note: Enhanced IP mode might be conflicted with smart events (face picture comparison, motion detection 2.0 and perimeter protection) or other functions, please refer to the user manual for details.

  • Analog Video Input

    8-ch

    BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

  • HDTVI Input

    4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps

    *: The 3 MP signal input is only available for channel 1 of iDS-7204HQHI-M1/FA, for channel 1/2 of iDS-7208HQHI-M1/FA, and for channel 1/2/3/4 of iDS-7216HQHI-M1/FA.

  • AHD Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
  • HDCVI Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
  • CVBS InputPAL/NTSC
  • HDMI Output

    1-ch, 1920 _ 1080/60Hz, 1280 _ 1024/60Hz, 1280 _ 720/60Hz,

    1024 _ 768/60Hz, HDMI/VGA simultaneous output

  • VGA Output

    1-ch, 1920 _ 1080/60Hz, 1280 _ 1024/60Hz, 1280 _ 720/60Hz,

    1024 _ 768/60Hz, HDMI/VGA simultaneous output

  • CVBS Output

    1-ch, BNC (1.0 Vp-p, 75 Ω),

    resolution: PAL: 704 _ 576, NTSC: 704 _ 480

  • Audio Input

    1-ch (up to 8-ch is optional), RCA (2.0 Vp-p, 1 KΩ)

    8-ch via coaxial cable

    Note: The number of audio inputs and alarm in/out can be optional. The tag on the package will describe audio input and alarm in/out parameters. For example, “4A+8/4ALM” means your device has 4 audio inputs, 8 alarm inputs and 4 alarm outputs. If your device only has 1 audio input, the tag may not describe it.

  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Synchronous playback8-ch
  • Network
  • Remote Connection64
  • Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
  • Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
  • Auxiliary Interface
  • Serial InterfaceRS-485 (half-duplex)
  • SATA1 SATA interface, up to 10 TB capacity for each disk
  • Alarm In/OutN/A (optional to support)
  • USB Interface

    Front panel: 1 _ USB 2.0;

    Rear panel: 1 _ USB 2.0

  • General
  • Power Supply12 VDC, 1.5 A
  • Consumption≤ 18 W (without HDD)
  • Working Temperature-10 °C to + 55 °C (14 °F to 131 °F)
  • Working Humidity10% to 90%
  • Dimension (W _ D _ H)315 _ 242 _ 45 mm (12.4 _ 9.5 _ 1.8 inch)
  • ≤ 1.78 kg (3.9 lb) (without HDD)

iDS-7208HQHI M1/FA
