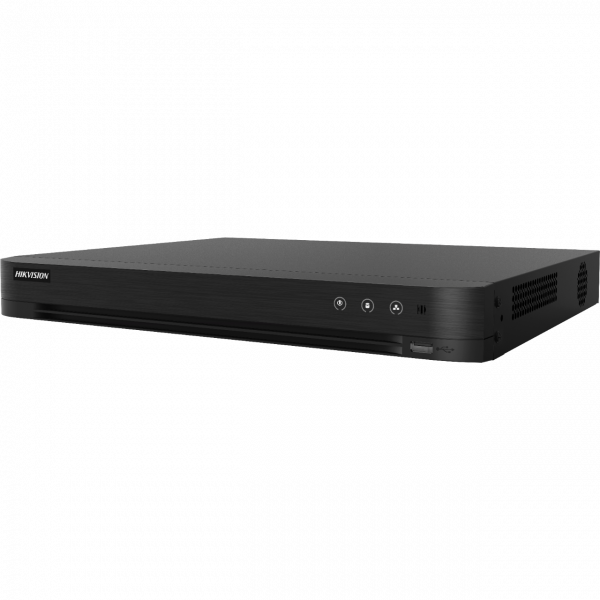

16-ch 4K 1U H.265 AcuSense DVR

16-ch 1080p 1U H.265 AcuSense DVR Deep learning-based analysis or face picture comparison H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression HDTVI/AHD/CVI/CVBS/IP video inputs Audio via coaxial cable Up to 12/24-ch IP camera inputs (up to 6 MP) Max. 800 m for 1080p and 1,200 m for 720p HDTVI signal transmission Up to 10 TB capacity per HDD
  • Facial Recognition
  • Face Picture LibraryUp to 16 face picture libraries, with up to 500 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 80 MB)
  • Face Picture Comparison1-ch face picture comparison alarm (HD analog camera)
  • Perimeter Protection
  • Human/Vehicle AnalysisUp to 4-ch
  • Facial Detection
  • Facial Detection and CaptureFace picture comparison, face picture search
  • Recording
  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution

    Main stream:

    When 1080p lite mode not enabled:

    For 4 MP stream access:

    4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

    For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps

    For 1080p stream access:

    1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

    For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

    When 1080p Lite mode enabled:

    4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

    Sub-stream:

    WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)

  • Video Bitrate32 Kbps to 6 Mbps
  • Dual-streamSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u
  • Audio Bitrate64 Kbps
  • Video and Audio
  • IP Video Input

    2-ch (up to 18-ch)

    Up to 6 MP resolution

    IP enhanced mode on:

    8-ch (up to 24-ch), each up to 4 Mbps

    Support H.265+/H.265/H.264+/H.264 IP cameras

  • Analog Video Input

    16-ch

    BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

  • HDMI Output

    1-ch, 1920 _ 1080/60Hz, 1280 _ 1024/60Hz, 1280 _ 720/60Hz,

    1024 _ 768/60Hz, HDMI/VGA simultaneous output

  • CVBS InputPAL/NTSC
  • CVBS Output

    1-ch, BNC (1.0 Vp-p, 75 Ω),

    resolution: PAL: 704 _ 576, NTSC: 704 _ 480

  • Synchronous Playback16-ch
  • HDTVI Input

    4 MP lite, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps

    *: The 3 MP signal input is only available for channel 1 of iDS-7204HQHI-M1/FA, for channel 1/2 of iDS-7208HQHI-M1/FA, and for channel 1/2/3/4 of iDS-7216HQHI-M1/FA.

  • AHD Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
  • HDCVI Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)_16-ch via coaxial cable
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Network
  • Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Remote Connection128
  • Network Interface1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Auxiliary Interface
  • SATA2 SATA interface, up to 10 TB capacity for each disk
  • Serial InterfaceRS-485 (half-duplex)
  • USB Interface

    Front panel: 1 _ USB 2.0;

    Rear panel: 1 _ USB 3.0

  • Alarm In/OutN/A
  • General
  • Power Supply12 VDC, 3.3 A
  • Consumption≤40 W
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10% to 90%
  • Dimension (W _ D _ H)380 _ 320 _ 48 mm (15.0 _ 12.6 _ 1.9 inch)
  • ≤ 2 kg (4.4 lb)

iDS-7216HQHI M2/FA
