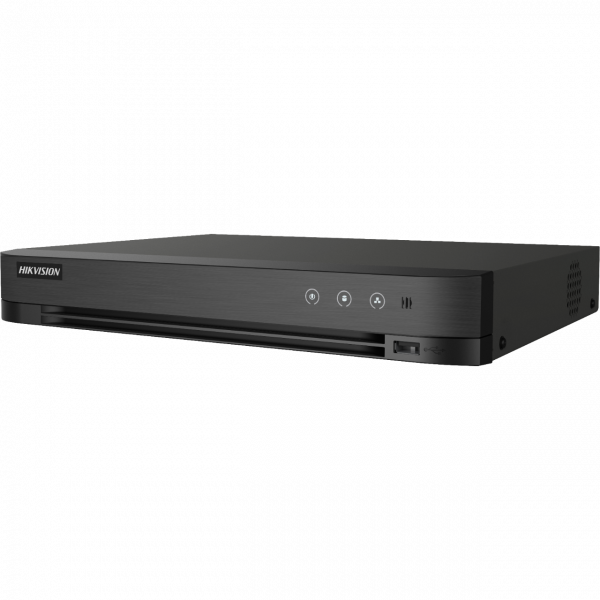

8-ch 5 MP 1U H.265 AcuSense DVR

8-ch 5 MP 1U H.265 AcuSense DVR Deep learning-based behavior analysis or face picture comparison H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression HDTVI/AHD/CVI/CVBS/IP video inputs Audio via coaxial cable Up to 8/16-ch IP camera inputs (up to 8 MP) Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission Up to 10 TB capacity per HDD
  • Facial Recognition
  • Face Picture LibraryUp to 16 face picture libraries, with up to 500 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 80 MB)
  • Face Picture Comparison1-ch face picture comparison alarm (HD analog camera)
  • Perimeter Protection
  • Human/Vehicle AnalysisUp to 4-ch
  • Facial Detection
  • Facial Detection and CaptureFace picture comparison, face picture search
  • Recording
  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution

    Main stream:

    8 MP@8 fps/5 MP@12 fps/

    4 MP@15 fps/3 MP@18 fps

    1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

    Sub-stream:

    WD1/4CIF/CIF@25 fps (P)/30 fps (N)

  • Video Bitrate32 Kbps to 10 Mbps
  • Dual-streamSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u
  • Audio Bitrate64 Kbps
  • Video and Audio
  • IP Video Input

    4-ch (up to 12-ch)

    Up to 8 MP resolution

    IP enhanced mode on:

    8-ch (up to 16-ch), each up to 4 Mbps

    Support H.265+/H.265/H.264+/H.264 IP cameras

  • Analog Video Input

    8-ch

    BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

  • HDMI Output

    1-ch, 4K (3840 _ 2160)/30Hz,

    2K (2560 _ 1440)/60Hz,

    1920 _ 1080/60Hz,

    1280 _ 1024/60Hz,

    1280 _ 720/60Hz,

    1024 _ 768/60Hz

    HDMI/VGA simultaneous output

  • VGA Output

    1-ch, 1920 _ 1080/60Hz,

    1280 _ 1024/60Hz,

    1280 _ 720/60Hz,

    1024 _ 768/60Hz

    HDMI/VGA simultaneous output

  • CVBS InputPAL/NTSC
  • CVBS Output

    1-ch, BNC (1.0 Vp-p, 75 Ω),

    resolution: PAL: 704 _ 576, NTSC: 704 _ 480

  • Synchronous Playback8-ch
  • HDTVI Input8 MP, 5 MP, 4 MP, 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
  • AHD Input5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
  • HDCVI Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)_8-ch via coaxial cable
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Network
  • Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Remote Connection64
  • Network Interface1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
  • Auxiliary Interface
  • SATA1 SATA interface
  • Capacityup to 10 TB capacity for each disk
  • Serial InterfaceRS-485 (half-duplex)
  • USB Interface

    Front panel: 1 _ USB 2.0;

    Rear panel: 1 _ USB 3.0

  • Alarm In/OutN/A
  • General
  • Power Supply12 VDC, 2 A
  • Consumption≤ 15 W
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10% to 90%
  • Dimension (W _ D _ H)315 _ 242 _ 45 mm (12.4 _ 9.5 _ 1.8 inch)
  • ≤ 2 kg (4.4 lb)

iDS-7208HUHI M1/FA
