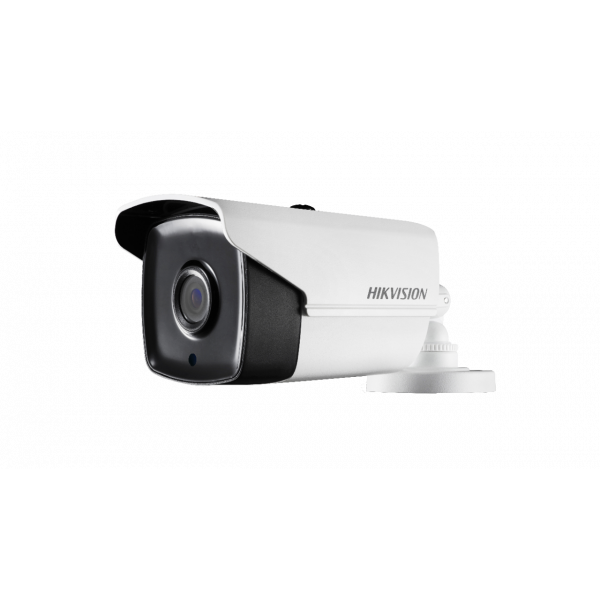

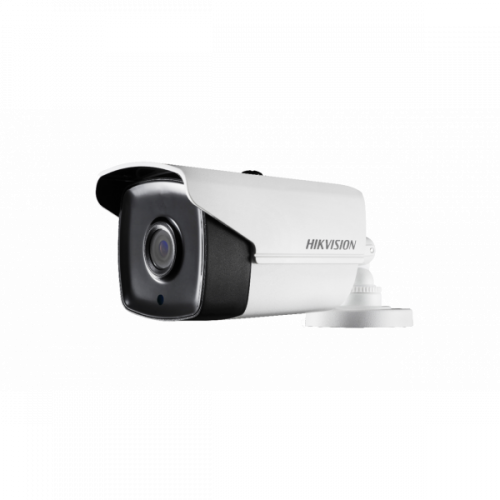

2 MP bullet camera
EXIR 2.0: advanced infrared technology with 40 m IR distance
Water and dust resistant (IP66)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Camera
Image Sensor
2MP CMOS image sensor
Max. Resolution
1920 (H) _ 1080 (V)
Min. Illumination
0.01 Lux@(F1.2,AGC ON),0 Lux with IR
Shutter Time
1/25 (1/30) s to 1/50,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Signal System
PAL/NTSC
Lens
Lens Type
3.6 mm, 2.8 mm, 6 mm, 8 mm, 12 mm fixed lens
Focal Length & FOV
2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122°
3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°
6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°
8 mm, horizontal FOV: 39.9°, vertical FOV: 21.9°, diagonal FOV: 46.5°
12 mm, horizontal FOV: 24.6°, vertical FOV: 13.9°, diagonal FOV: 28.1°
Lens Mount
M12
Image Settings
Brightness, Sharpness, DNR, Mirror
Frame Rate
PAL: 1080p@25fps,NTSC: 1080p@30fps
Day/Night Mode
Smart/color/BW(Black and White)
Wide Dynamic Range (WDR)
DWDR
Image Enhancement
BLC
AGC
Low/middle/high
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS
General
Material
Front cover: Mental ,Main Body: Plastic,Bracket: Metal
Dimension
86.7 mm _ 81.6 mm _ 226 mm (3.4" _ 3.2" _ 8.9")
430 g (0.95 lb.)
Operating Condition
-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Language
English, Chinese
Power Supply
12 VDC±15%
Consumption
Max. 4 W
IR Range
Up to 40 m
Approval
Protection
IP66
