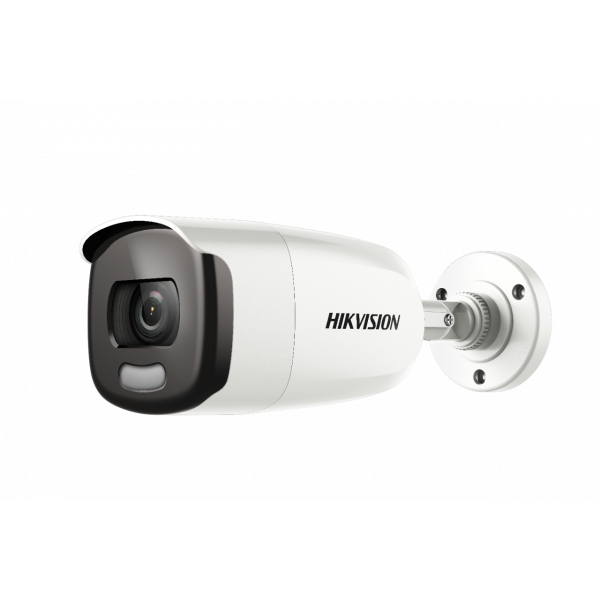

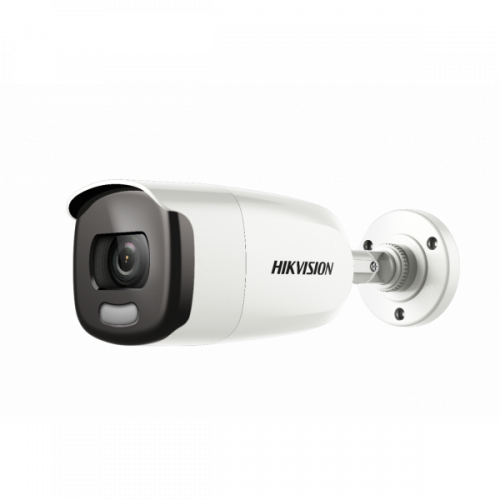

2 MP ColorVu Fixed Bullet Camera
2 MP full time color bullet camera
24/7 full color imaging
2.8 mm fixed focal lens
Warm supplemental light with 40 m range
Clear imaging even against strong back lighting due to 130 dB true WDR technology
3D DNR technology delivers clean and sharp images
Water and dust resistant (IP67)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).
Camera
Image Sensor
2 MP CMOS
Max. Resolution
1920 (H) _ 1080 (V)
Min. Illumination
0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Day & Night
Color
Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Lens
Lens Type
2.8 mm fixed lens
Focal Length & FOV
2.8 mm, horizontal FOV: 104°, vertical FOV: 54°, diagonal FOV: 126°
Lens Mount
M16
Image Parameters Switch
STD/HIGH-SAT
Image Settings
Brightness, Sharpness, 3D DNR, Mirror, Smart light
Frame Rate
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Wide Dynamic Range (WDR)
130 dB
Image Enhancement
BLC,HLC
White Balance
ATW/MANUAL
AGC
Support
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS
General
Material
Front Cover: Metal
Main Body: Plastic
Dimension
223.1 mm _ 77.1 mm _ 82.6 mm (8.78" _ 3.04" _ 3.25")
Approx. 436 g (0.96 lb.)
Operating Condition
-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
Communication
HIKVISION-C
Language
English
Power Supply
12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
Consumption
Max. 4.2 W
IR Range
Up to 40 m
Approval
Protection
IP67
2 MP ColorVu Fixed Turret Camera
2 MP full time color turret camera
24/7 full color imaging
Warm supplemental light with 20 m range
Clear imaging even against strong back lighting due to 130 dB true WDR technology
3D DNR technology delivers clean and sharp images
Water and dust resistant (IP67)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
2 MP Fixed Mini Bullet Camera
2 MP bullet camera
Smart IR: up to 25 m IR distance
Water and dust resistant (IP67)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
16-ch 1080p 1U H.265 AcuSense DVR
Deep learning-based analysis or face picture comparison
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
Audio via coaxial cable
Up to 12/24-ch IP camera inputs (up to 6 MP)
Max. 800 m for 1080p and 1,200 m for 720p HDTVI signal transmission
Up to 10 TB capacity per HDD
5 MP Fixed Bullet Camera
5 MP bullet camera
EXIR 2.0: advanced infrared technology with 40 m IR distance
Water and dust resistant (IP67)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
2 MP bullet camera
EXIR 2.0: advanced infrared technology with 40 m IR distance
Water and dust resistant (IP66)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
8-ch 1080p 1U H.265 AcuSense DVR 8 channels and 1 HDD 1U AcuSense DVR Supports facial recognition or false alarm reduction based on deep learning algorithm Supports face picture comparison and face picture search Up to 16 face picture libraries, with up to 500 face pictures in total Efficient H.265 pro+ compression technology Encoding ability up to 1080p @ 15 fps 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP) Up to 12 network cameras can be connected
4-ch 1080p 1U H.265 DVR
4 channels and 1 HDD 260 case DVR
Efficient H.265 pro+ compression technology
Encoding ability up to 1080p @ 15 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 6 network cameras can be connected.
8-ch 5 MP 1U H.265 AcuSense DVR
Deep learning-based behavior analysis or face picture comparison
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
Audio via coaxial cable
Up to 8/16-ch IP camera inputs (up to 8 MP)
Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission
Up to 10 TB capacity per HDD
5MP POC Fixed Turret Camera
5 MP turret camera
EXIR 2.0: advanced infrared technology with 20 m IR distance
Water and dust resistant (IP67)
Transmits both HD video and power over the same coaxial cable
5 MP PoC Fixed Turret Camera
5 MP turret camera
EXIR 2.0: advanced infrared technology with 20 m IR distance
Water and dust resistant (IP67)
Transmits both HD video and power over the same coaxial cable
5 MP Fixed Mini Bullet Camera
5 MP bullet camera
EXIR 2.0: advanced infrared technology with 20 m IR distance
Water and dust resistant (IP67)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
16-ch 1080p 1U H.265 AcuSense DVR
Deep learning-based analysis or face picture comparison
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
Audio via coaxial cable
Up to 12/24-ch IP camera inputs (up to 6 MP)
Max. 800 m for 1080p and 1,200 m for 720p HDTVI signal transmission
Up to 10 TB capacity per HDD
2 MP Fixed Turret Camera
2 MP turret camera
Smart IR: up to 25 m IR distance
Water and dust resistant (IP67)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
2 MP ColorVu Fixed Bullet Camera
2 MP full time color bullet camera
24/7 full color imaging
2.8 mm fixed focal lens
Warm supplemental light with 40 m range
Clear imaging even against strong back lighting due to 130 dB true WDR technology
3D DNR technology delivers clean and sharp images
Water and dust resistant (IP67)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).
